Thunder Bolt
Model Bolt

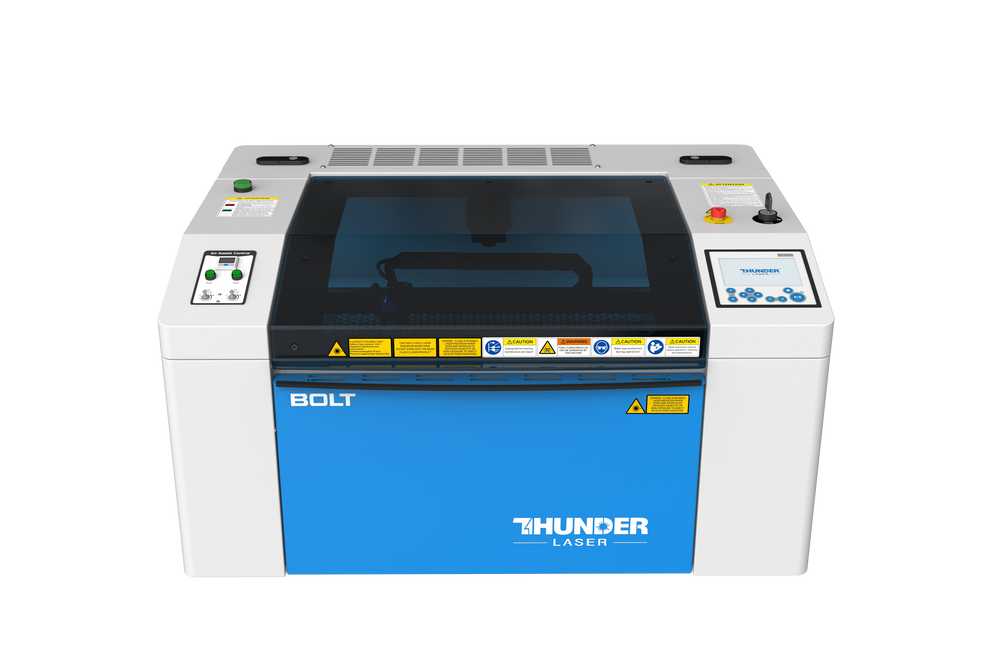

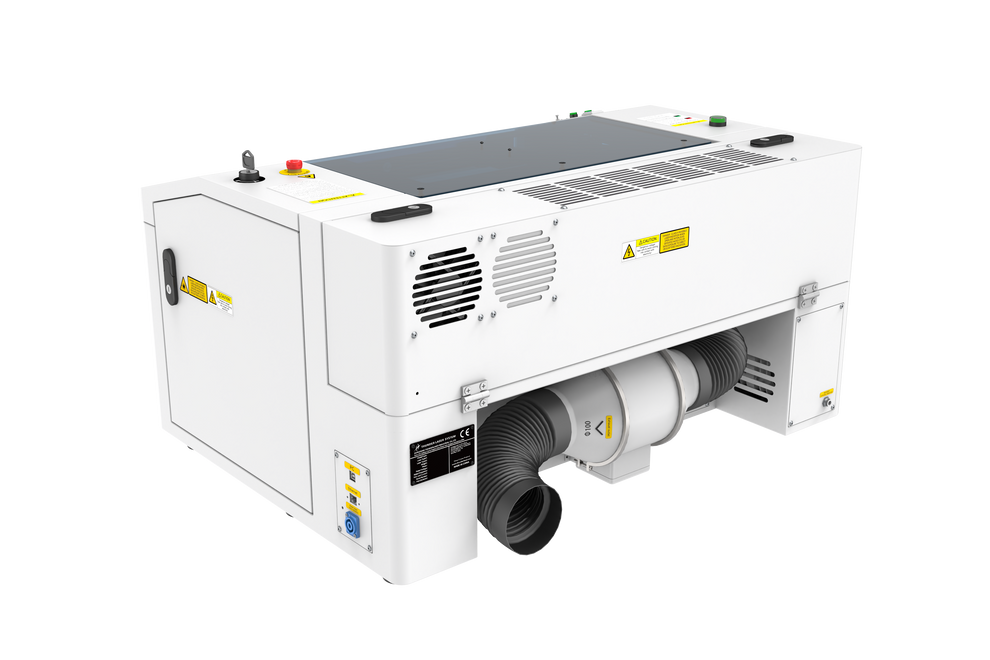

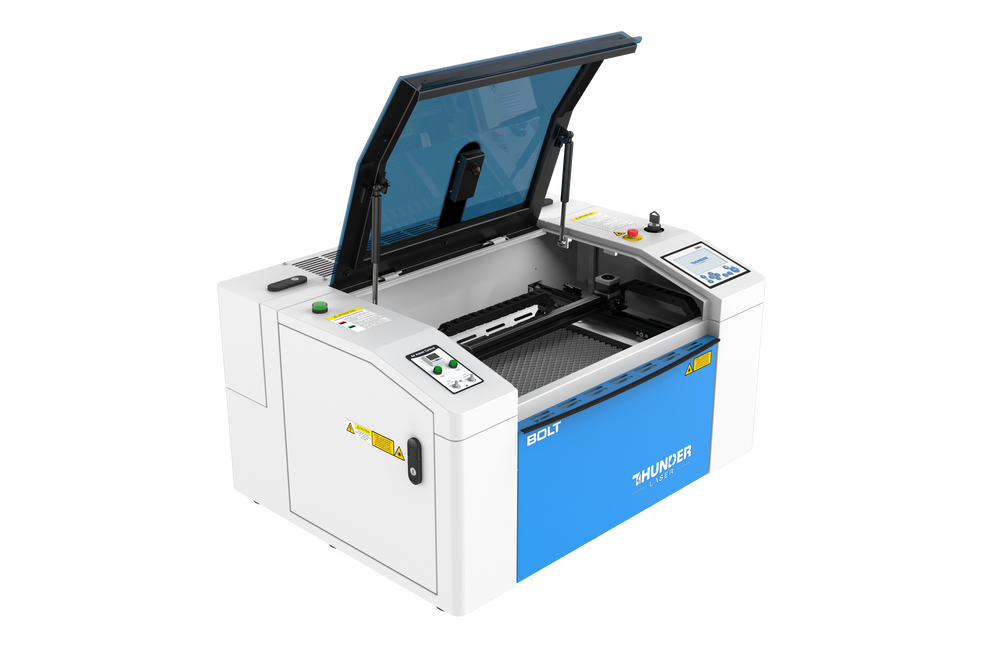

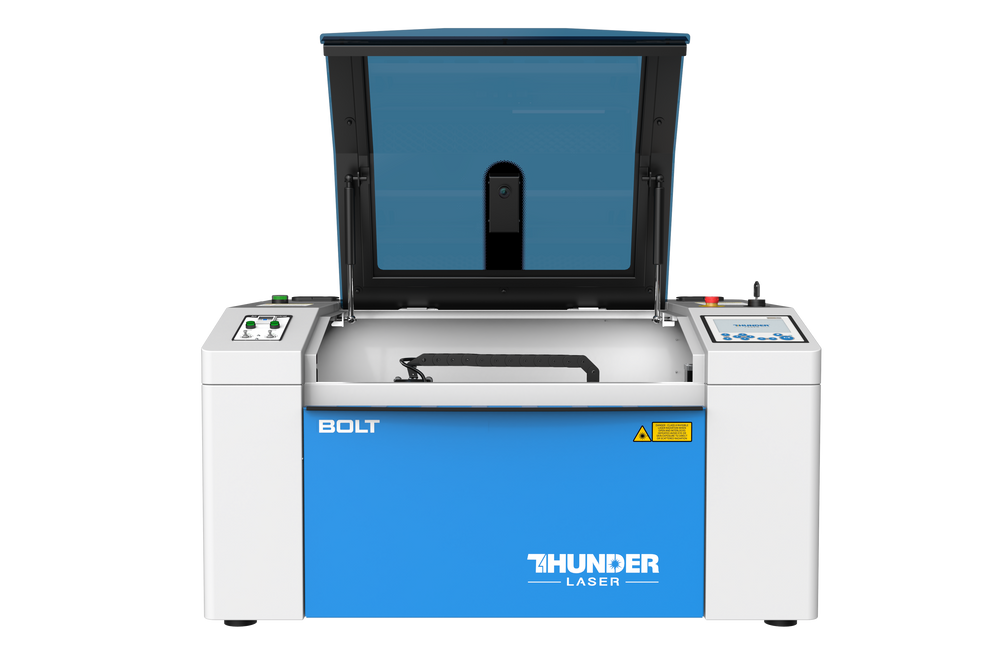

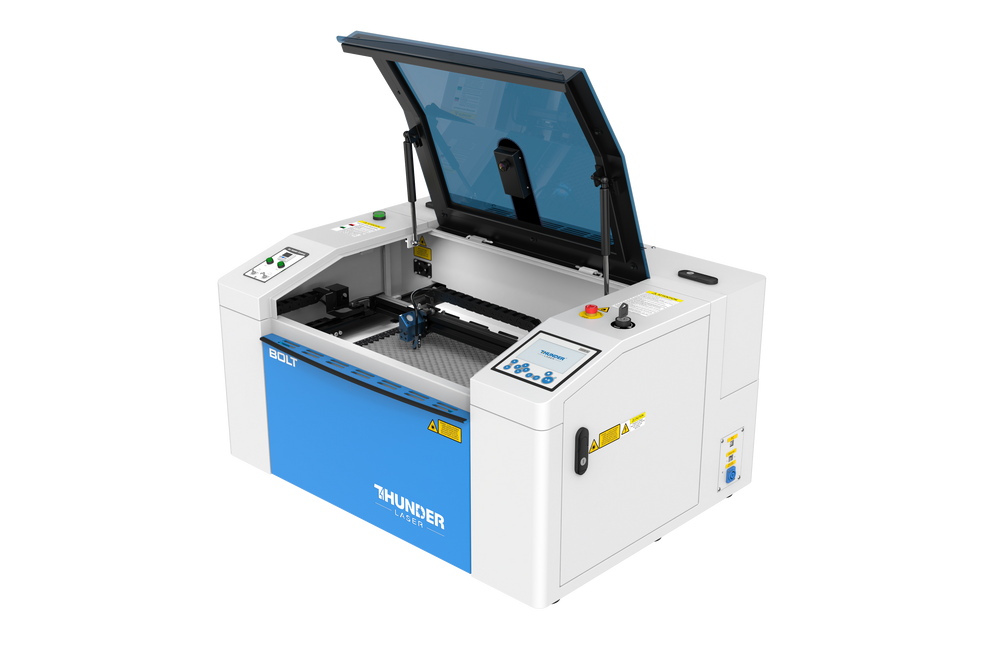

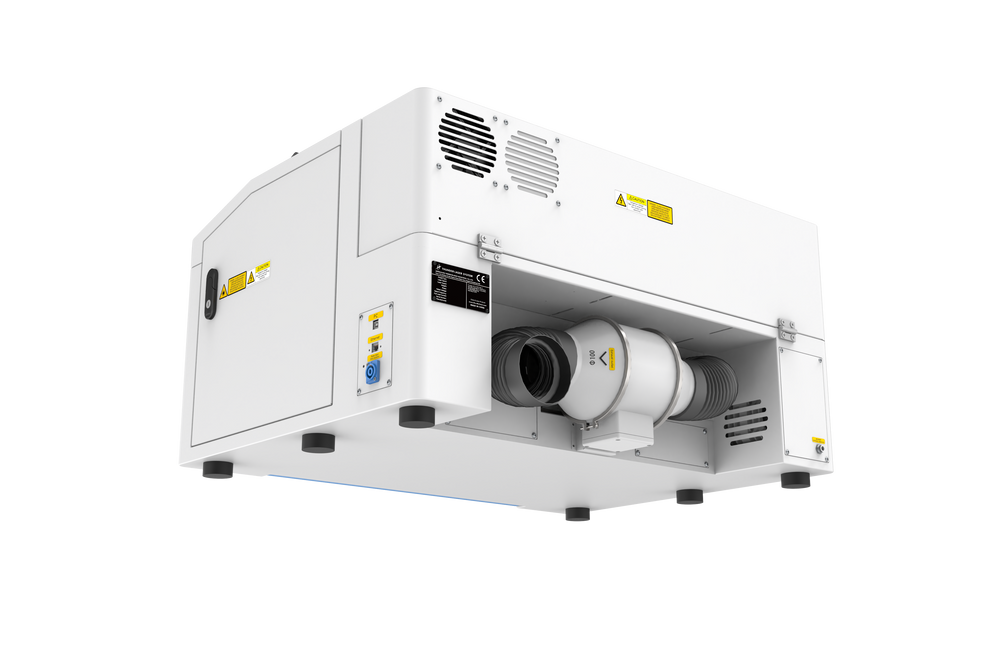

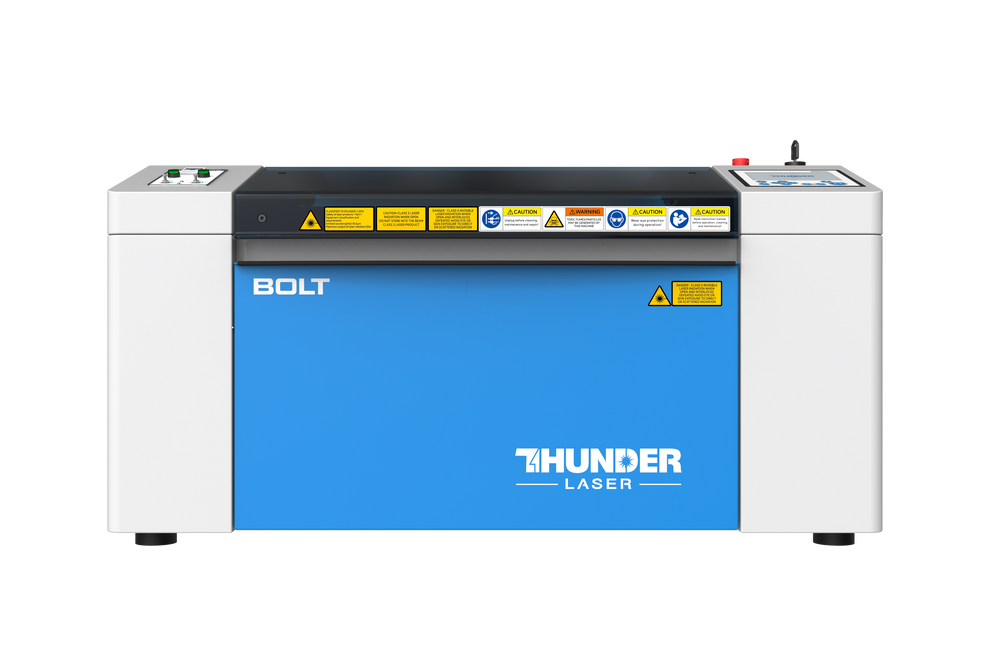

Meet the Thunder Laser Bolt - our fastest, most capable desktop laser engraver yet. Built for production, it combines industrial-grade durability, ultra-fast engraving, and intuitive touchscreen control in a compact footprint. New for this year, the Bolt includes customer-requested upgrades that take performance even further: dual-stage air assist for cleaner results, faster maximum engraving speeds for higher throughput, enhanced built-in safety features, and a rotary-ready design with the tray now included. Powered by a high-efficiency RF laser source, onboard memory, and a high-resolution camera, the Bolt is designed to help your business work faster, cleaner, and smarter, right out of the box.
Add to My MachinesSpecifications
| Specification | Value |
|---|---|
| Type | CO2 |
| Power | 60.00 W |
| Wavelength | 10600 nm |
| Architecture | RF Metal Tube |
| Cooling | Air |
| Laser Source | RF |
| Specification | Value |
|---|---|
| Work Area | 508 × 305 mm |
| Z Clearance | 160 mm |
| Max Speed | 1,500 mm/s |
| Lens | Focal Length |
|---|---|
| 2.5" CO2 Lens Default | 63.5 mm |
| 1.5" CO2 Lens | 38.1 mm |
| 2" CO2 Lens | 50.8 mm |
| 4" CO2 Lens | 101.6 mm |
| Software | Support |
|---|---|
| LightBurn | Native |
